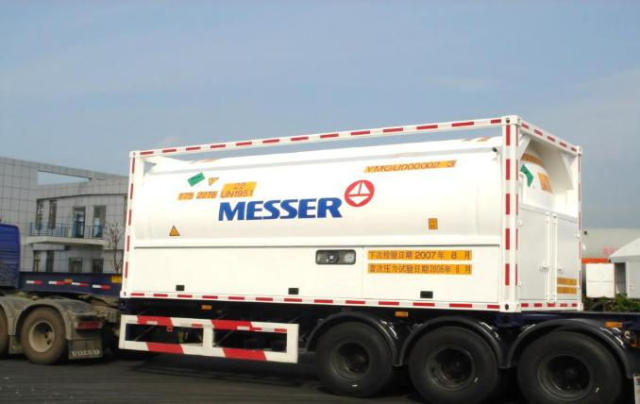

LO2/LN2/LAr/LCO2/C2H4 industrial gas storage tank and Semi-trailer
Product introduction

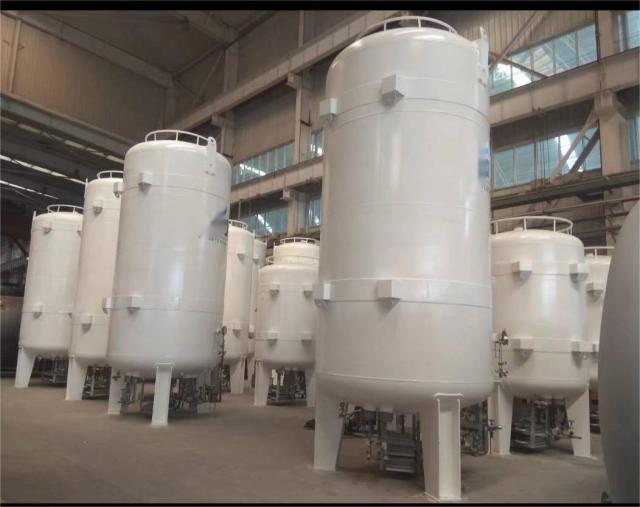

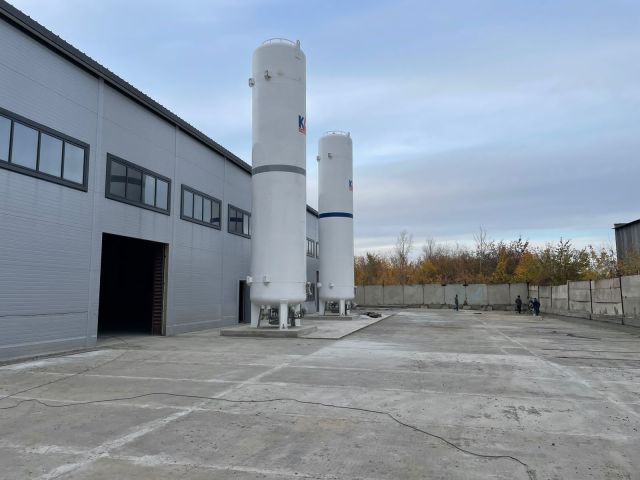

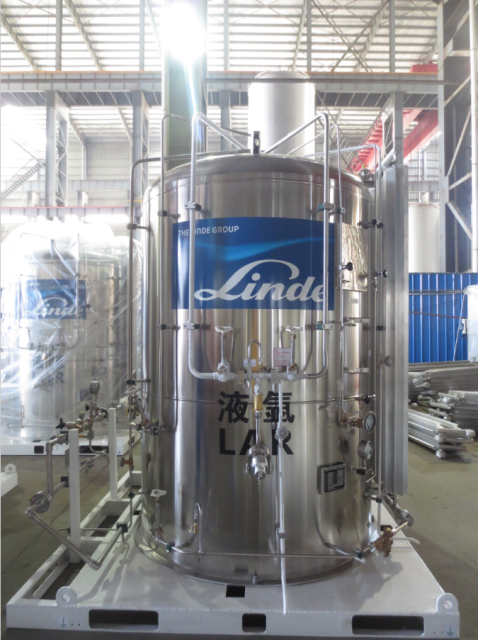

This series of low-temperature storage tanks is a double-layer fixed vacuum powder adiabatic storage tank (storage tank).The inner liner material is made of stainless steel (of which the carbon dioxide storage tank is 16MnDR), and the outer liner material is Q335R or 16MnR or stainless steel. The surface anticorrosive coating adopts sandblasting, rust removal, purging, spraying and other processes, and at the same time adopts a two-component fast-curing liquid coating.

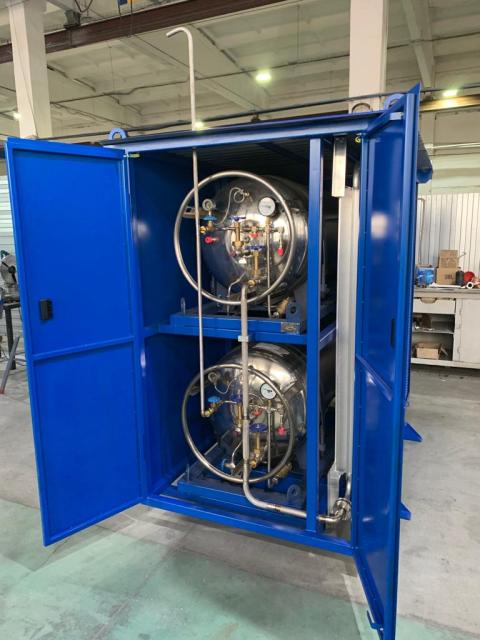

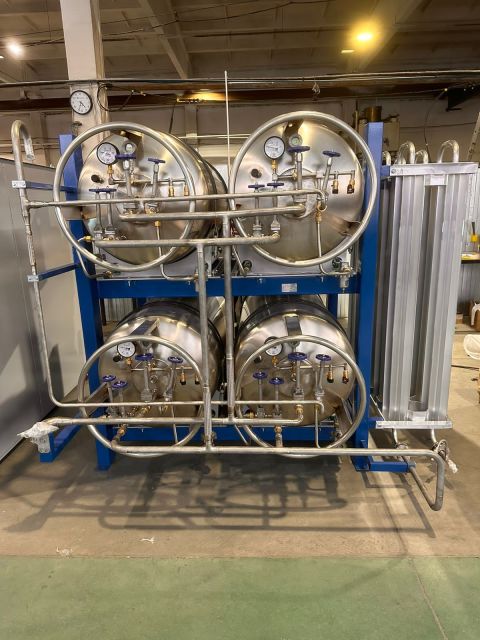

1 cubic meter liquid cylinder can replace 130 gas cylinders.It can replace the daily round-trip transportation of gas cylinders, saving a lot of manpower and material resources.It is widely used in gas, medical treatment, metal smelting and other fields with large gas consumption, and is the best product to achieve centralized gas supply.It has the characteristics of long service life, compact structure, small footprint, centralized control, and easy operation.
The volume of the storage tank: 1m3/2m3/3m3/5m3/6m3/8m3/10m3/20m2/30m3/50m3/100m3/150m3/200m3/250m3

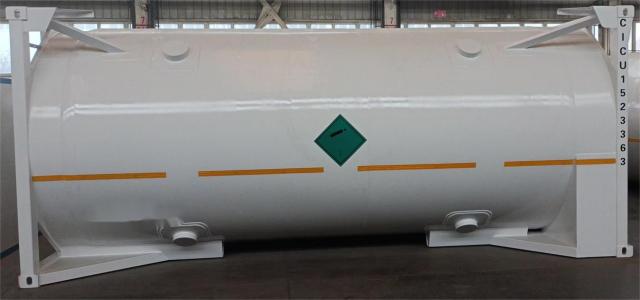

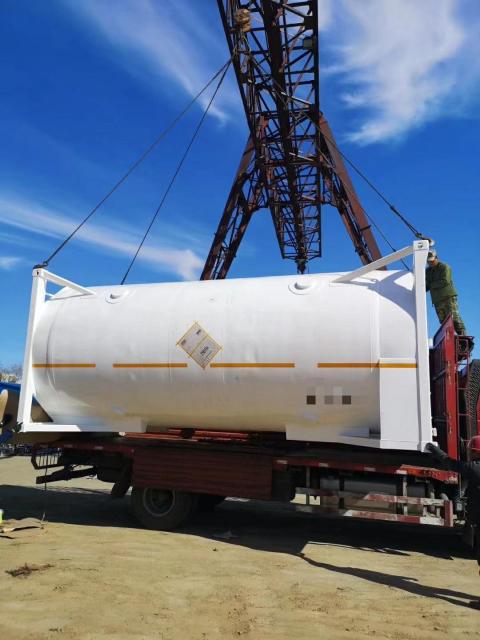

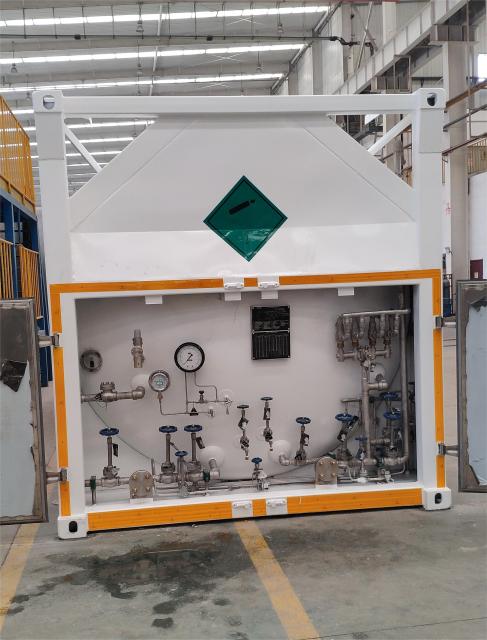

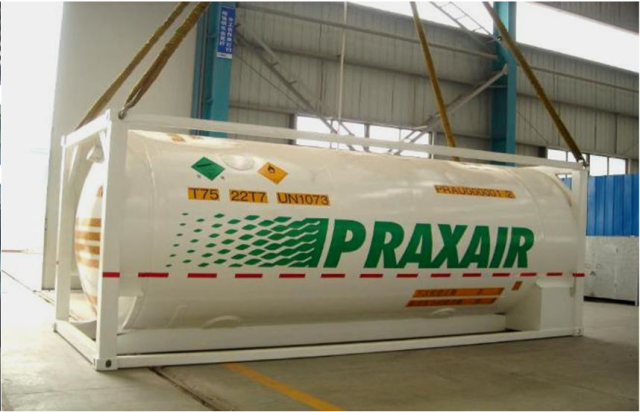

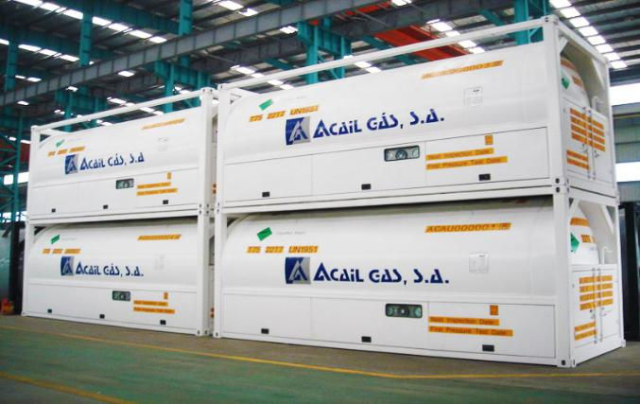

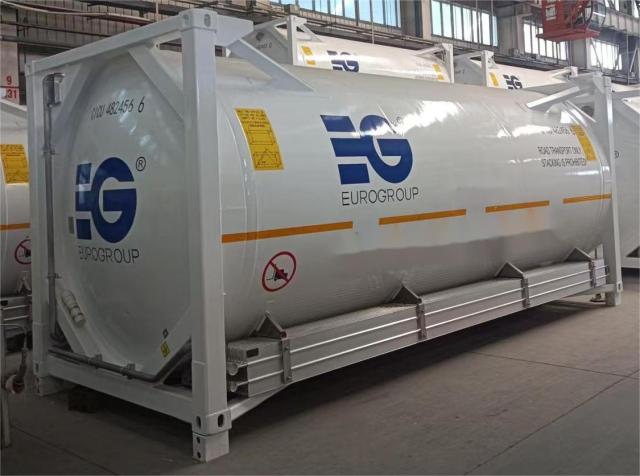

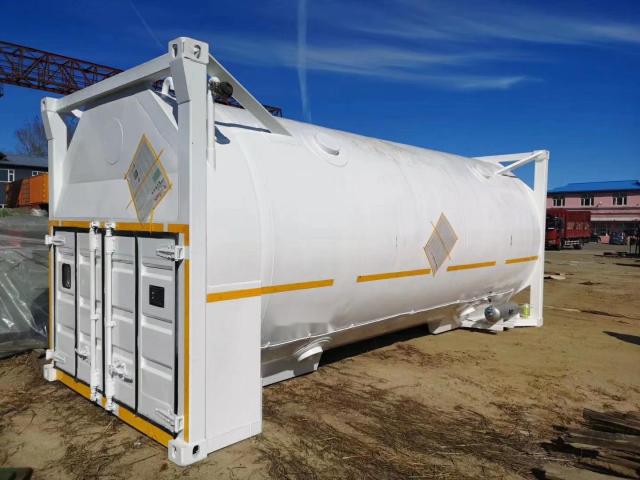

Type of the tank container 20 and 40 foot: 20 and 40 foot
The volume of the storage tank: Designed according to user needs and local laws and regulations
Working pressure of liquid oxygen, liquid nitrogen, liquid argon and ethylene storage tank：0.8/1/6/2.2MPa
Working pressure of liquid oxygen, liquid nitrogen, liquid argon and ethylene tank container 20 and 40 foot：0.8/1/6/2.2MPa
Working pressure of liquid oxygen, liquid nitrogen, liquid argon and ethylene semi-trailer：0.8/1/6MPa
